Details
：
Input: AC100 to 240V 50 to 60Hz
Switchable voltage options: 12DC/DC15V/DC16V/DC18V or 18.5V/DC19V or 19.5V/DC20V/DC22V/DC24V
USB 5V2A
PoOCP/OVP/SCP/OTP protection
Efficiency: >87%(TYP)
Choose the interchangeable smart tip according to output voltage
Power Max: 85 W
DC plug-in Connector: 8 tips
- Tip A: 6.0mm x 4.5mm x 1.4mm (Fujitsu/SONY)
- Tip B: 6.3mm x 3.0mm (NEC/Toshiba)
- Tip C: 5.5mm x 2.5mm (HP/Fujitsu/Toshiba/NEC/LENOVC)
- Tip D: 5.5mm x 2.1mm (Acer)
- Tip E: 5.5mm x 1.7mm (Acer/Toshiba/Delta)
- Tip F: 4.75mm x 1.7mm (ASUS/HP)
- Tip G: 4.0mm x 1.7mm (SONY LASTCST MINI)
- Tip J: 3.5mm x 1.35mm (SHAR/SHARP)

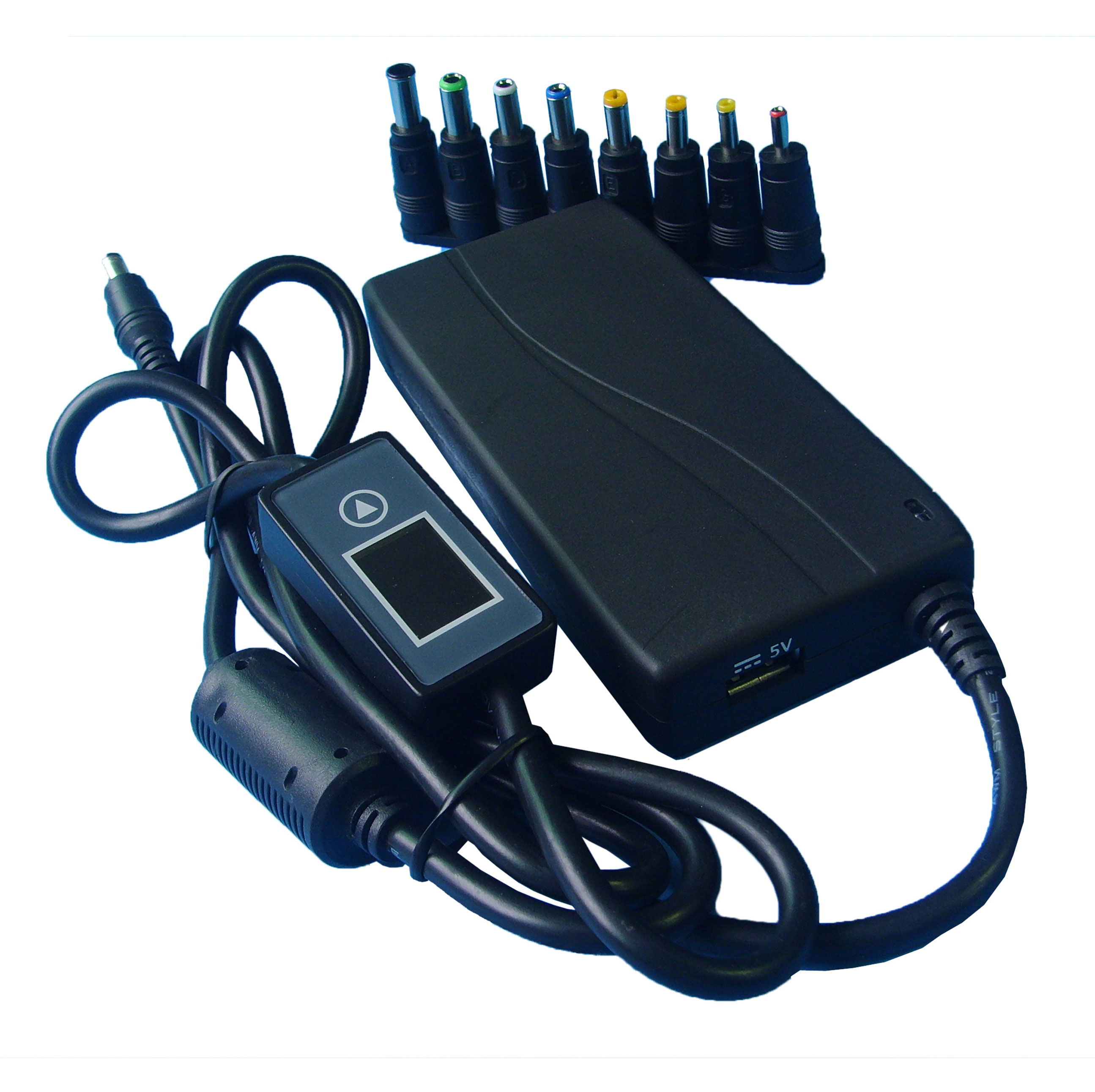

Includes: AC adapter, plug-in connectors and power cord
The following plug-in Connector can choose according to your needs
- Tip I: DELL 3pin
- Tip J: TOSHIBA 4pin
- Tip K: IBM 7 x 5.5mm
- Tip L: DELL 7.4 x 5.0mm
- Tip M: HP 7.4 x 5.0mm
- Tip N: ASUS 2.5 x 0.5mm
· Correlative information:
· 1.Function: overload, over-voltage and short-circuit protection
· 2.With CE, CB, FCC, SAA, RoHS and CCC marks (certificates and test reports are available)
· 3.After-sale services, guarantee replacement within three months and full 12 month guarantee repair
· 4.Fit laptop model: Asus, Averatec, Compaq, Dell, Fujitsu, Gateway, HP, IBM, NEC, Panasonic, Sony and Toshiba
· 5.Fit another device: mobile phone, camera, LCD, game player and more
