Details
：
Input: AC 100 to 240V, 50 to 60Hz (worldwide use)
Switchable voltage options:
DC12/DC15V/DC16V/DC18V or 18.5V/DC19V or 19.5V/DC20V/DC24V
OCP/OVP/SCP/OTP protection
Efficiency: >87% (TYP)
Max. power: 70W
DC plug-in connector: 8 tips
Tip A: 6.0 x 4.5 x 1.4mm (Fujitsu/SONY)
Tip B: 6.3 x 3.0mm (NEC/Toshiba)
Tip C: 5.5 x 2.5mm (HP/Fujitsu/Toshiba/NEC/LENOVC)
Tip D: 5.5 x 2.1mm (Acer)
Tip E: 5.5 x 1.7mm (Acer/Toshiba/Delta)
Tip F: 4.75 x 1.7mm (ASUS/HP)
Tip G: 4.0 x 1.7mm (SONY LASTCST MINI)
Tip J: 3.5 x 1.35mm (SHAR/SHARP)

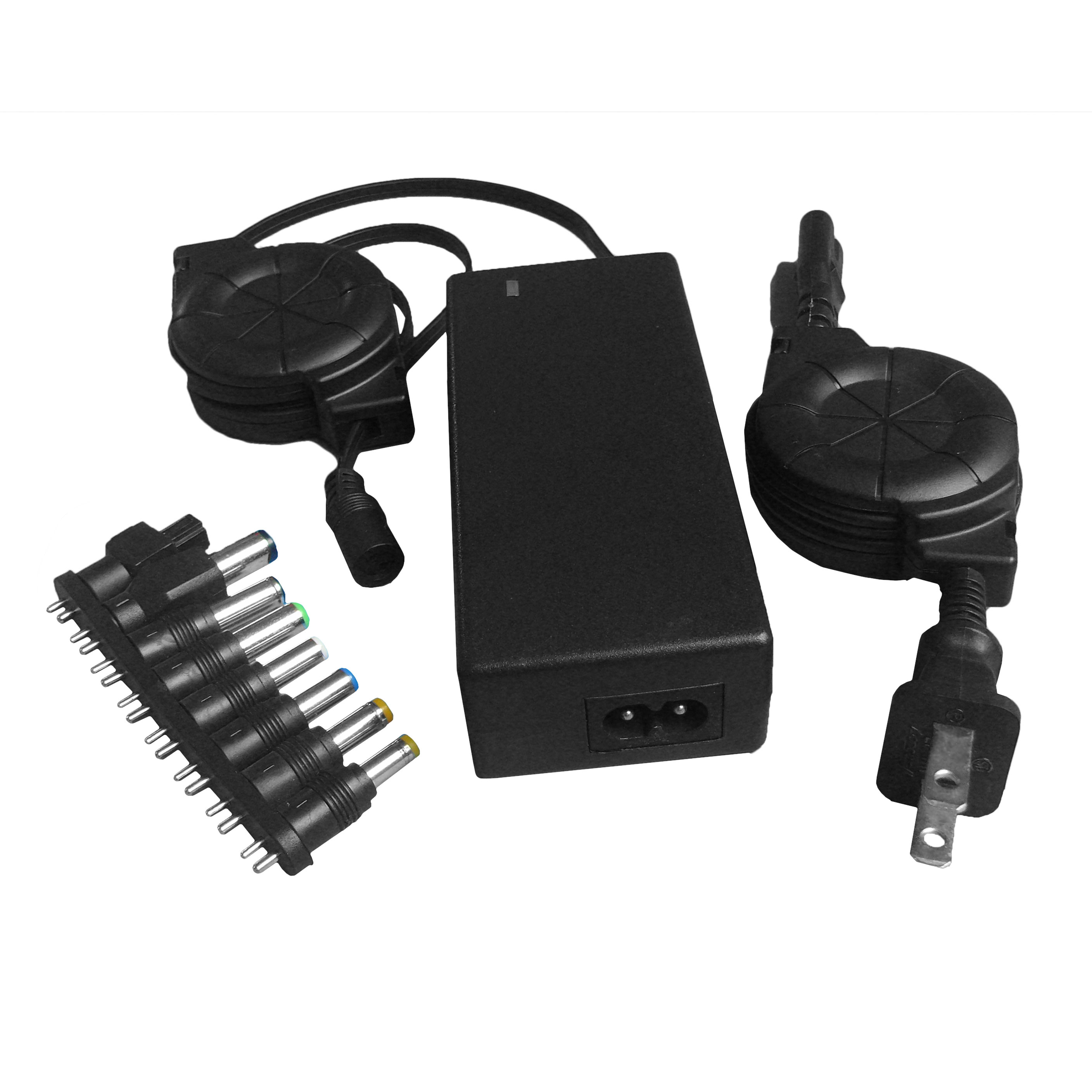

Item includes: AC adapter, plug-in connectors and power cord
Remarks:
The following plug-in connectors can be chose according to your needs
Tip I: DELL 3-pin
Tip J: TOSHIBA 4-pin
Tip K: IBM 7 x 5.5mm
Tip L: DELL 7.4 x 5.0mm
Tip M: HP 7.4 x 5.0mm
Correlative information:
1.Function: overload, over-voltage and short-circuit protection
2.With CE, CB, FCC, SAA, RoHS and CCC marks (certificates and test reports are available)
3.After-sale services, guarantee replacement within three months and full 12 month guarantee repair
4.Fit laptop model: Asus, Averatec, Compaq, Dell, Fujitsu, Gateway, HP, IBM, NEC, Panasonic, Sony and Toshiba
5.Fit another device: mobile phone, camera, LCD, game player and more
All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks. |
