Details
：
Input: DC11 to 15V (worldwide use)
Switchable voltage options: DC12/DC15V/DC16V/DC18V or 18.5V/DC19V or 19.5V/DC20V/DC24V
USB 5V2A
OCP/OVP/SCP/OTP protections
Efficiency: >87% (TYP)
Max. power: 120W
DC plug-in connector: 8 tips
- Tip A: 6.0 x 4.5 x 1.4mm (Fujitsu/SONY)
- Tip B: 6.3 x 3.0mm (NEC/Toshiba)
- Tip C: 5.5 x 2.5mm (HP/Fujitsu/Toshiba/NEC/LENOVC)
- Tip D: 5.5 x 2.1mm (Acer)
- Tip E: 5.5 x 1.7mm (Acer/Toshiba/Delta)
- Tip F: 4.75 x 1.7mm (ASUS/HP)
- Tip G: 4.0 x 1.7mm (SONY LASTCST MINI)
- Tip J: 3.5 x 1.35mm (SHAR/SHARP)

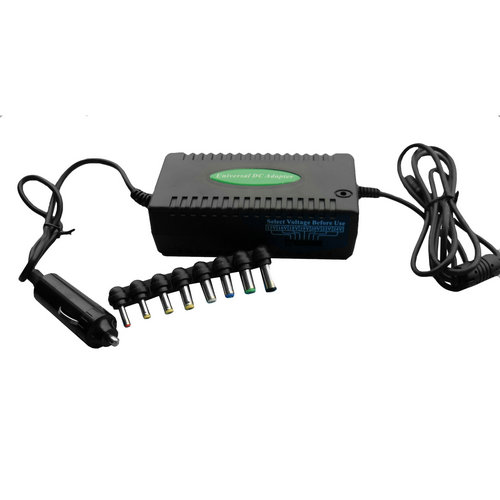

Item includes: AC adapter, plug-in connectors and power cord
Remarks:
- The following plug-in connectors can be chose according to your needs
- Tip I: DELL 3-pin
- Tip J: TOSHIBA 4-pin
- Tip K: IBM 7 x 5.5mm
- Tip L: DELL 7.4 x 5.0mm
- Tip M: HP 7.4 x 5.0mm
- Tip N: ASUS 2.5 x 0.5mm
Correlative information:
- 1.Function: overload, over-voltage and short-circuit protections
- 2.With CE, CB, FCC, SAA, RoHS and CCC marks (certificates and test reports are available)
- 3.After-sale services, guarantee replacement within three months and full 12 months guarantee repair
- 4.Fit laptop models: Asus, Averatec, Compaq, Dell, Fujitsu, Gateway, HP, IBM, NEC, Panasonic, Sony and Toshiba
- 5.Fit another device:Mobile phone,Camera,LCD,MP3,MP4,PSP,ect
All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks. |
